abrasive medium

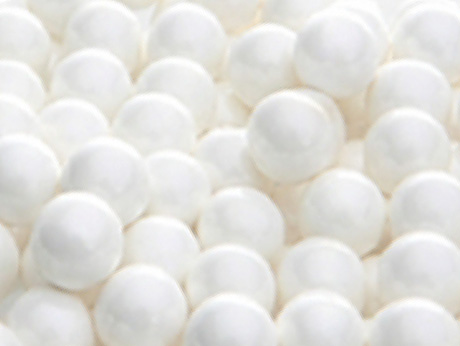

Zirconium silicate grinding beads

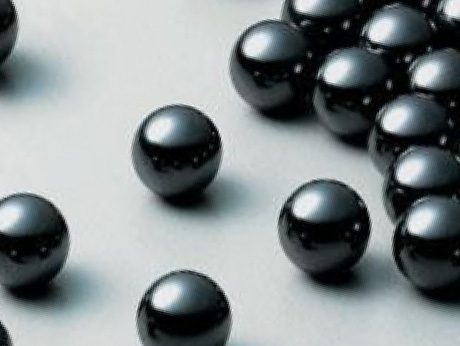

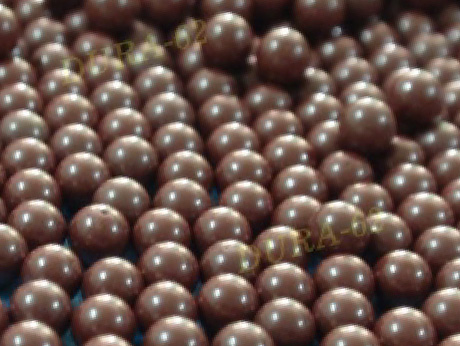

Cerium-stable zirconia beads

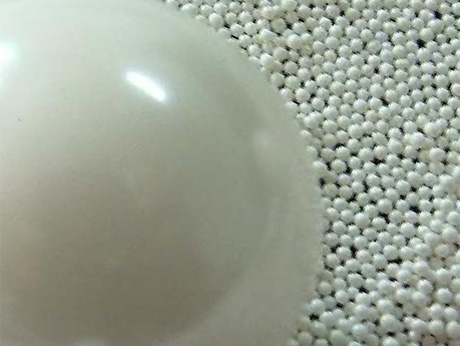

Yttrium-stable zirconia beads

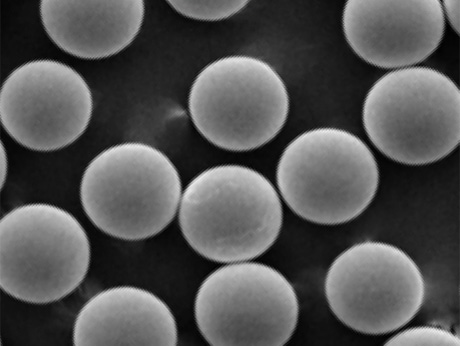

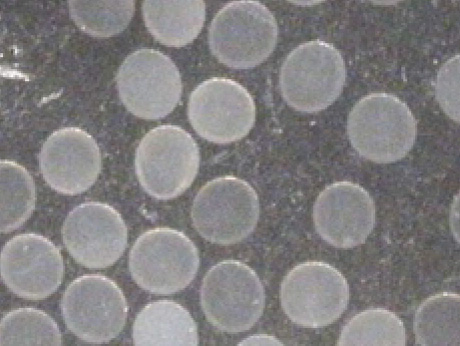

Sectional view

outside view

Silica grinding beads

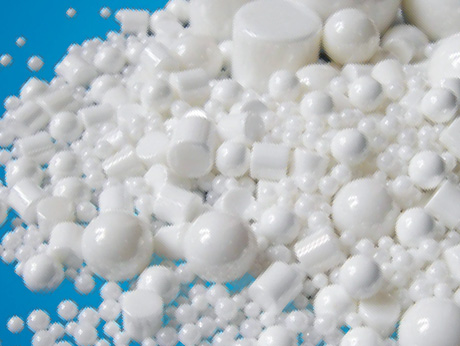

High-purity alumina zhu

technical specification

Grinding media type	Yttrium stabilized zirconia beads	Cerium stabilized zirconia beads	Zirconium silicate beads	Alumina beads	Zirconium aluminum composite beads	Silicon nitride beads
Chemical composition	ZRO2=95% Y2O3=5%	ZRO2=80% CeO2=18%	ZRO2=65%	Al2O3=92%	ZRO2=80% Al2O3=15%	Si3N4
g/cm³ True density	6.0	6.2	4.0	3.7	5.5	3.2
g/cm³ Bulk density	3.6	4	2.5	2.0	3.3	1.86
Hardness	9	9	7.2	9	9	9-9.5
Specifications	0.03-2.0	0.05-2	0.1-10	0.1-10	0.1-10	0.1-10

Mesh size - micron (μm) standard comparison table

Mesh count per inch	Micron um	Mesh count per inch	Micron um	Mesh count per inch	Micron um
80	187.5um	1000	15.0um	15000	1.0um
100	150um	1250	12.0um	20000	0.75um
120	125um	1500	10.0um	30000	0.5um
200	75.0um	2000	7.5um	50000	0.3um
300	50.0um	2500	6.0um	100000	0.15um
400	37.5um	3000	5.0um	150000	0.10um
500	30.0um	5000	3.0um	300000	0.05um
600	25.0um	8000	1.875um
800	18.75um	10000	1.5um

notice for use

1. The mechanical seal coolant should be mixed with a solvent that is compatible with the material. When the temperature of the water solvent is less than 0℃, alcohol or ethylene glycol should be added for dilution to prevent the mechanical seal from freezing and being damaged.
2. Replace the mechanism coolant regularly every month, and keep the liquid level within the upper and lower limits of the window. When the coolant of the mechanical seal becomes turbid, stop the machine to check if the mechanical seal is leaking and replace the coolant.
4. The rotation direction of the machine must be the same as that indicated on the signboard.
5. When the machine is in operation, it is essential to ensure that the cooling water flows smoothly to prevent the mechanical seal and other components from being damaged by high temperatures. When the machine is in operation, if there are abnormal sounds or vibrations, it must be stopped for inspection.
7. It is strictly prohibited to adjust the set value of the pressure gauge and the internal parameter values at will.
8. When the machine is just started, appropriately increase the feeding speed of the pump to enable it to discharge materials as soon as possible and prevent the temperature of the materials in the cavity from being too high.
9. Select high-quality zirconium beads to prevent broken beads from clogging the screen. Regularly screen the zirconium beads to prevent small beads from clogging the screen and damaging the machine seal. The belts of the new machine should be inspected and tightened after 2 to 3 months of use.
11. Regularly check the accuracy of the instrument, the wear of the inner lining and other abnormalities. 12.When the machine is not in use for a long time, it should be thoroughly cleaned.
13. Please read the installation and operation manual carefully before installing and using the machine.
14. Before the first use, it is essential to ensure that there are no obstacles in the transmission parts of the machine.
15. For your safety, please ensure that you use a power switch with leakage protection and that the equipment can be grounded.
16. If the machine malfunctions, non-professionals are not allowed to disassemble it.
