Guangdong Wiking Intelligent Equipment Co.,Ltd.

KSLS Powder Conveying System

Dust -free and dosed transportation can efectively prevent dust from poluting the environment and improve the cleanliness of the workshop:Reduce cross infection; High safety, simple and safe operation; Assembled modular design can effectively prevent dead corners, and each section is connected with quick-open clamps for easy disassembly and cleaning: Automatic control system, small size, small footprint, easy maintenance,Clear components, and can be inspected and maintained at any time.

Style

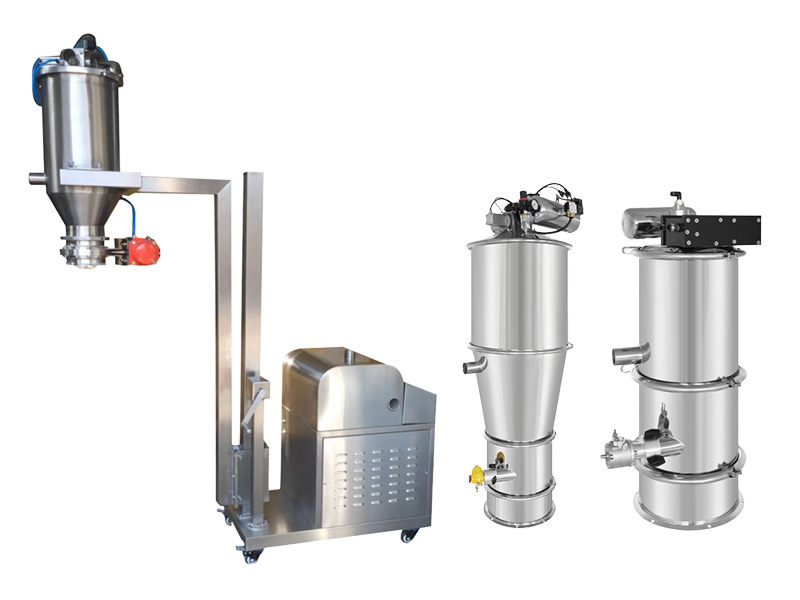

Vacuum feeder

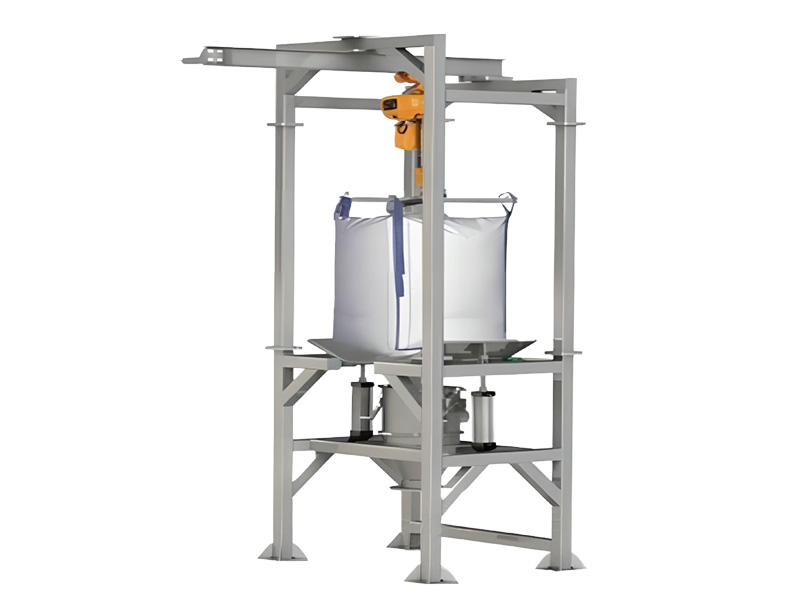

Ton bag feeding station

  • parameter
  • index
  • application

Model

Motor power

Conveying capacity / h

Air supply pressure

Compressed air consumption

Supply voltage
KSL-1.5 1.6KW 200–400KG 0.4–0.6MPa 25L/min 380V
KSL-2.2 2.2KW 300–600KG 0.4–0.6MPa 25L/min 380V
KSL-3 3KW 500–1200KG 0.4–0.6MPa 25L/min 380V
KSL-5.5 (single stage) 5.5KW 1000–2500KG 0.4–0.6MPa 30L/min 380V
KSL-5.5 (double stage) 5.5KW 1500–3200KG 0.4–0.6MPa 30L/min 380V
KSL-7.5 7.5KW 3000–6000KG 0.4–0.6MPa 30L/min 380V

Applicable to pharmaceutical, chemical, food, coating, ceramic, battery materials, etc.
