KP-S/D Series Disc Pin Sand Mill

  • Special eccentric disc design, strong shear force, high grinding efficiency, uniform particle size distribution.
  • Two systems of large-area screen separation and dynamic separation to meet diferent material requirements; the separation system has a large flow rate and does not block the machine.
  • The cooling system is designed based on the spiral stereo thermal principle and fluid principle, which can quickly cool the material and effectively control the grinding temperature.
  • Imported sealing technology. safe and rellable, adding the same type of solvent as the material to prevent material loss due to leakage.
  • Pressure, temperature, liquid level automatic protection device interlocking, safer to use.
  • Multiple materials are available for internal structure to meet the grinding needs of different materials.
  •  Optional button operation (explosion-proof) or PLC touch screen operation.
Style

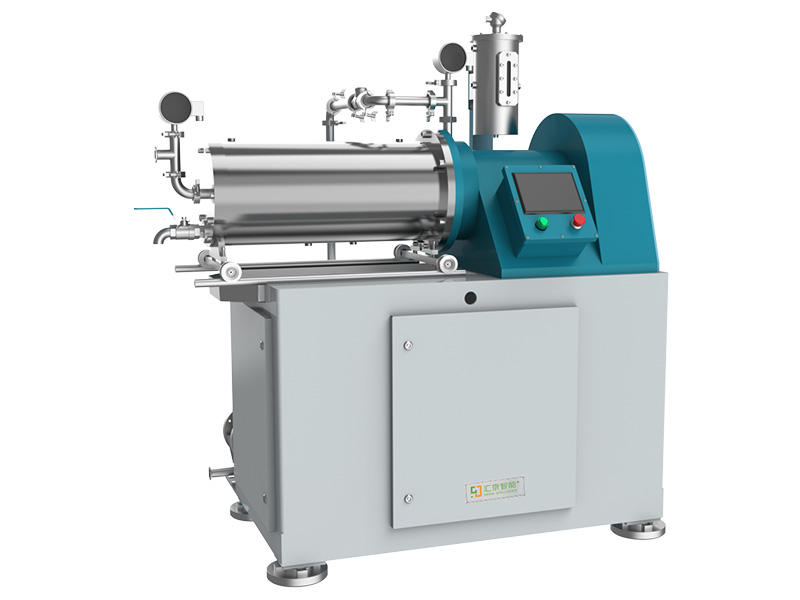

KP-S/D5/10/15/20/30/50/60L

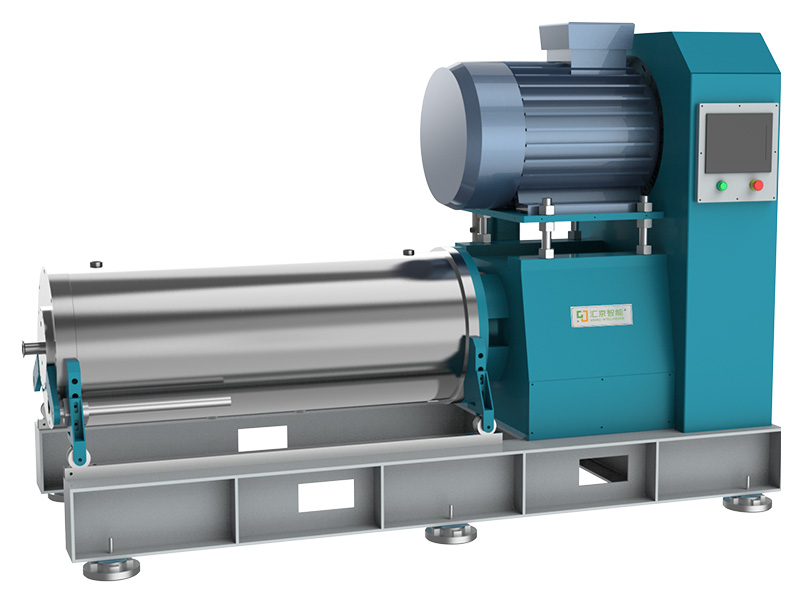

KP-S/D-100/200/500/1000L

  • parameter
  • index
  • application
Model Effective Volume(L) Main Motor Power(kw) Minimum Feeding Volume(L) Medium Size(mm) Cooling Water(m³/H) Overall Dimensions(mm) Machine Weight(kg)
KP-S-5L 5 7.5 20 0.3-2.0 1-1.5 1160x1000x1750 350
KP-S-15L 15 15 30 0.3-2.0 1.5-2 1240x1000x1750 550
KP-S-20L 20 22 40 0.3-2.0 2-3 1400x1000x1750 750
KP-S-30L 30 30 60 0.3-2.0 3-4 1600x1150x1800 1000
KP-S-50L 50 37 100 0.3-2.0 6-7 2000x1150x1650 1600
KP-S-100L 100 55 200 0.3-2.0 10-15 2600x1450x1950 2500
KP-S-200L 200 75 300 0.3-2.0 20-25 2700x1450x1950 4000
KP-S-300L 300 110 500 0.3-2.0 25-30 2970x1550x2200 5500
KP-S-500L 500 160 800 0.3-2.0 30-35 3200x1650x2300 7000
KP-S-1000L 1000 400 1500 0.3-2.0 60-70 3800x1850x2400 9000
  • Feed particle size: <200 μm
  • Final particle size: ≥0.3 μm
  • Solvent type: water-based, solvent-based
  • Viscosity requirement: <8000CPS
  • Medium size: 0.3-2.0mm
  • Optional materials: zirconium oxide, silicon carbide, alloy, polyurethane, etc.

Coatings, inks, pesticides, magnetic materials, titanium dioxide, calcium carbonate, zirconium silicate, pigments, carbon black,etc.
