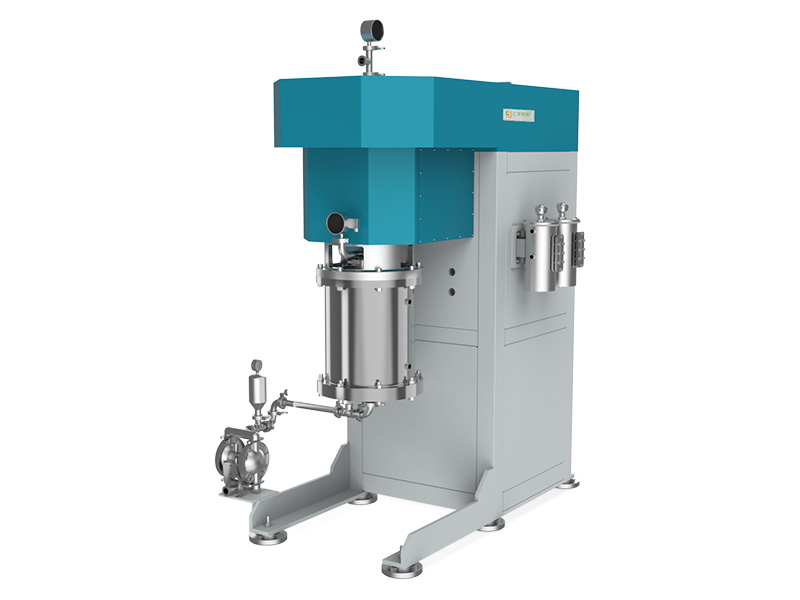

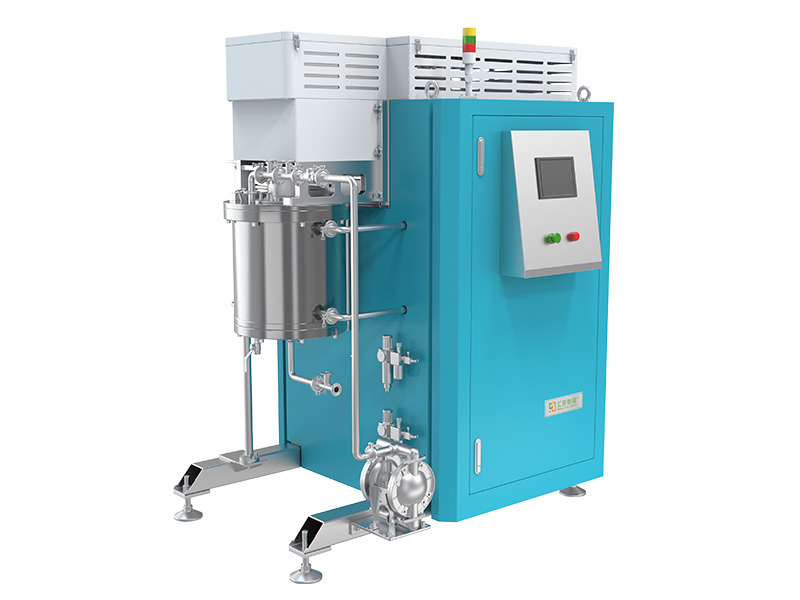

KNL-L/S Series Vertical Nano Sand Mill
Specially designed vertical grinding system, strong shear force and high grinding efficiency.
No screen, no shaft seal structure design, ensure no leakage and no blockage.
Grading separation and grading grinding, more uniform distribution of grinding particle size.
Imported sealing technology, safe and reliable, adding the same type of solvent as the material to prevent material loss due to leakage.
Pressure, temperature, liquid level automatic protection device interlock, safer to use.
Internal structure with multiple materials to choose from to meet the needs of different grinding materials.
Optional button operation (explosion-proof) or PLC touch screen operation.
Hotline
+86-13790585271
Style
KNL-L-0.1/0.3/0.5/1/5/10/15/30L
KNL-L-60/150/400/1000L
parameter
index
application
Model
Effective Volume(L)
Main Motor Power(kw)
Minimum Feeding Volume(L)
Medium Size(mm)
Cooling Water(m³/H)
Overall Dimensions(mm)
Machine Weight(kg)
KNL-L-0.1L
0.1
1.5
0.1（不循环）
0.03-2.0
0.2-0.3
500x560x850
80
KNL-L-0.3L
0.3
2.2
0.2（不循环）
0.03-2.0
0.3-0.4
500x560x850
100
KNL-L/S-0.5L
0.5
4
2.5
0.03-2.0
0.6-0.8
500x750x950
190
KNL-L/S-1L
1
5.5
3
0.03-2.0
0.6
1200x750x1600
380
KNL-L/S-6L
6
15
30
0.03-2.0
1.5
1600x900x2000
1300
KNL-L/S-15L
15
22
50
0.03-2.0
2
1850x980x2200
1800
KNL-L/S-30L
30
45
80
0.03-2.0
6
2000x1050x2400
2000
KNL-L/S-60L
60
75
100
0.03-2.0
12
2400x1250x2700
4500
KNL-L/S-150L
150
185
300
0.03-2.0
22
3100x1450x3100
9800
KNL-L/S-400L
400
355
600
0.05-2.0
40
4200x1650x3600
15000
KNL-L/S-1000L
1000
650
1500
0.1-2.0
75
5700x1900x1900
128000
Feed particle size: ≤100 μm
Fine particle size: >0.03 μm
Solvent type: water-based, solvent-based
Viscosity requirement: ≤5000CPS
Medea size: 0.03-2.0mm
Optional materials: zirconium oxide, silicon nitride, polyurethane, etc.
Ink, ceramic powder, new nano materials, etc.
