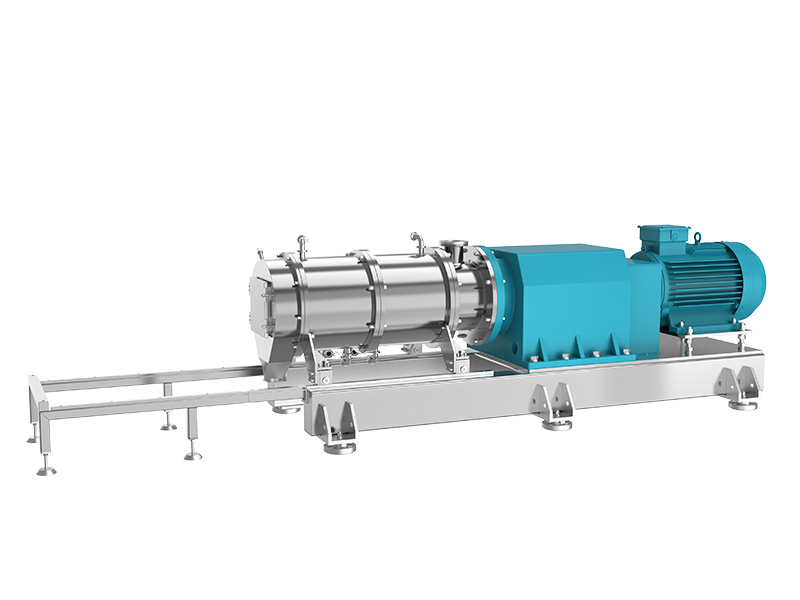

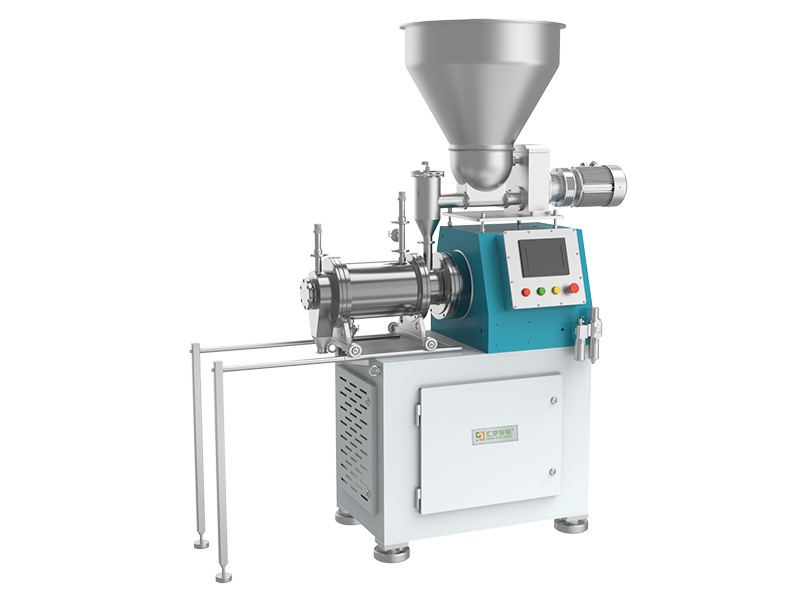

KG Series Dry Sand Mill

Dry sand mills and wet sand mills are two representative equipment in the dry and wet processes of powder raw material processing.Although these are completely diferent processes, they are often applied to the same target materials. The choice between them typically depends on the process route determined by customers' specific considerations. For instance, customers prioritizing simplicity in processing steps and having lower requirements for partice morpholgy tend to prefer jet mills. Conversely, customers less concerned about process complexity but requiring specific particle shapes may opt for sand mils. Other determining factors incude recovery rate.particle size distribution, specific surface area, maximum particle size (Dmax), and processing efficiency. In industrial applications.customer demands are often idealized, yet it has traditionally been challenging to find equipment that fully or substantially meets such ideal requirements. However, in today's powder processing field, these near-ideal customer demands may well be achievable with our advanced equipment.

Style

  • parameter
  • index
  • application
Model Chamber Volume(L) Power(kw) Overall dimensions(mm)
WxDxH
Weight(kg approx.)
KGM-2L 2 7.5 800x600x900 120
KGM-5L 5 15 1000x900x1500 450
KGM-15L 15 22 1200x900x1600 800
KGM-30L 30 30 1600x1100x1700 1500
KGM-60L 60 75 2000x1300x1300 2500
KGM-120L 120 90 3800x1300x1300 3800
KGM-500L 500 200 5800x1600x1400 10000
  • Main Functions: Powder grinding, dispersion
  • Internal Material: Zirconia (ZrO2), Silicon Nitride
  • Processing Fineness:0.6-100um

Aluminum oxide, zirconium oxide, titanium oxide, zirconium silicate, silicon carbide, silicon nitride, high-end ceramic electronic materials,armaceutical industry, chemical industry, food industry, etc.
