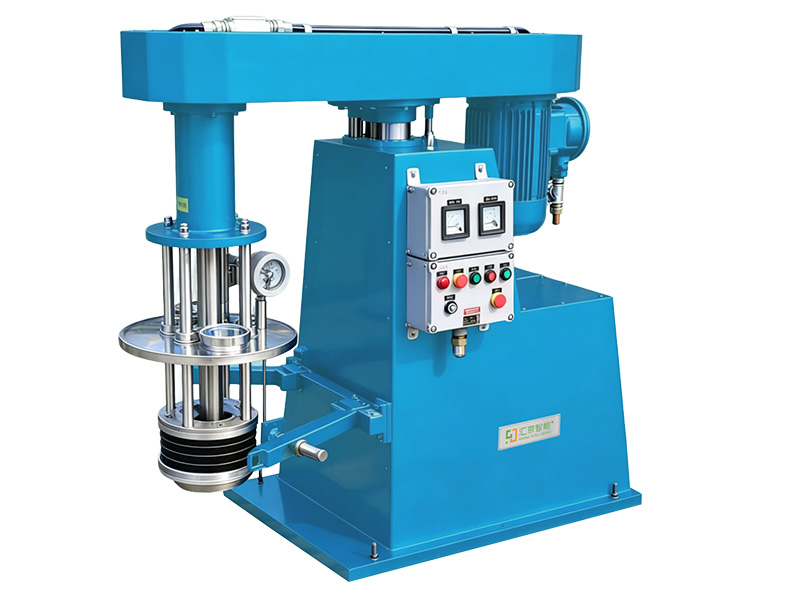

KL Basket Sand Mill

Basket design with lifting function, convenient for loading and unloading grinding materials.
Double impeller design at the bottom of the basket grinding materials do not need auxiliary circulation, saving energy and reducing costs.
Temperature control system can be used to measure material temperature.
Using gears, scrapers use the basket as the center for scraping and stirring movements.
Suitable for high-yield and large-scale production needs.
Optional platform type, multi-basket fine grinding type, sealed type, vacuum type, etc.
Select single-layer or double layer stainless steel containers according to the properties of the material.

Style

KL-1.5/2.2/5.5/7.5/15/18.5/22/37/45/55

Model	(kw) Power	（L） Basket volume	(L) Stirring tank capacity	Lifting method	(mm) Medium size	Weight (kg approx.)	(mm) Dimensions
KL-1.5	1.5	1	1–5	电动 Electric	1.0–5.0	80	600 × 400 × 550
KL-2.2	2.2	2	10–50	电动 Electric	1.0–5.0	250	700 × 400 × 750
KL-5.5	5.5	4	50–200	液压 Hydraulic pressure	1.0–5.0	450	1550 × 750 × 1750
KL-7.5	7.5	6	200–500		1.0–5.0	800	1550 × 750 × 1750
KL-15	15	10	300–500		1.0–5.0	1000	1750 × 800 × 1750
KL-18.5	18.5	10	300–800		1.0–5.0	1200	1750 × 800 × 1750
KL-22	22	15–20	500–1000		1.0–5.0	1500	1900 × 850 × 2050
KL-37	37	40	500–2000		1.0–5.0	1800	1900 × 1000 × 2050
KL-45	45	40	500–2000		1.0–5.0	2000	2000 × 1000 × 2150
KL-55	55	40	500–3000		1.0–5.0	2500	2200 × 1000 × 2150

Coatings, water-based paints, inks, paints, foods, sulfur, etc.
