Guangdong Wiking Intelligent Equipment Co.,Ltd.

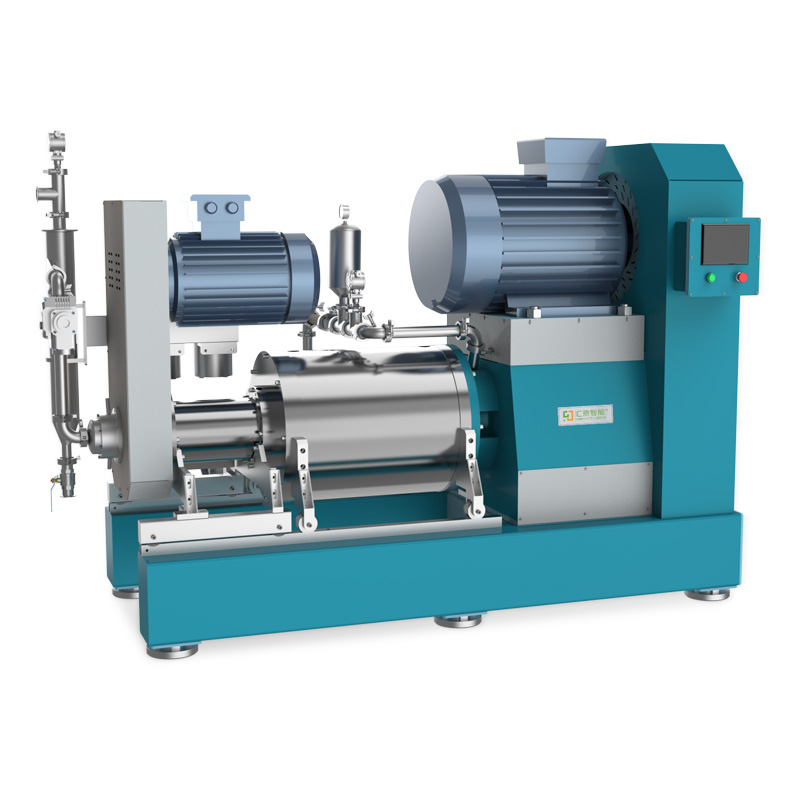

KNB-L Series Dual Power Nano Sand Mill

  • The centrifugal separation system can use 0.03mm grinding beads, which is suitable for ultra-fine grinding of materials above 30nm.
  • The new separation strucure design overcomes the problem of leakage of grinding balls in the centrfugal separation system;the screen-free separation system will never block the machine.
  • The rod-pin grinding structure has high grinding efficiency and more uniform particle size distribution without dead corners.
  • The imported sealing technology is safe and reliable. Adding the same type of sovent to the material can prevent material loss due to leakage.
  • The pressure, temperature, and liquid level automatic protection devices are interlocked, which is safer to use.
  • The internal structure with multiple materials to choose from can meet the needs of diferent materials.
  • Optional button (explosion-proof) operation or PLC touch screen operation.
Style

3L/6L/10L/30L/60L

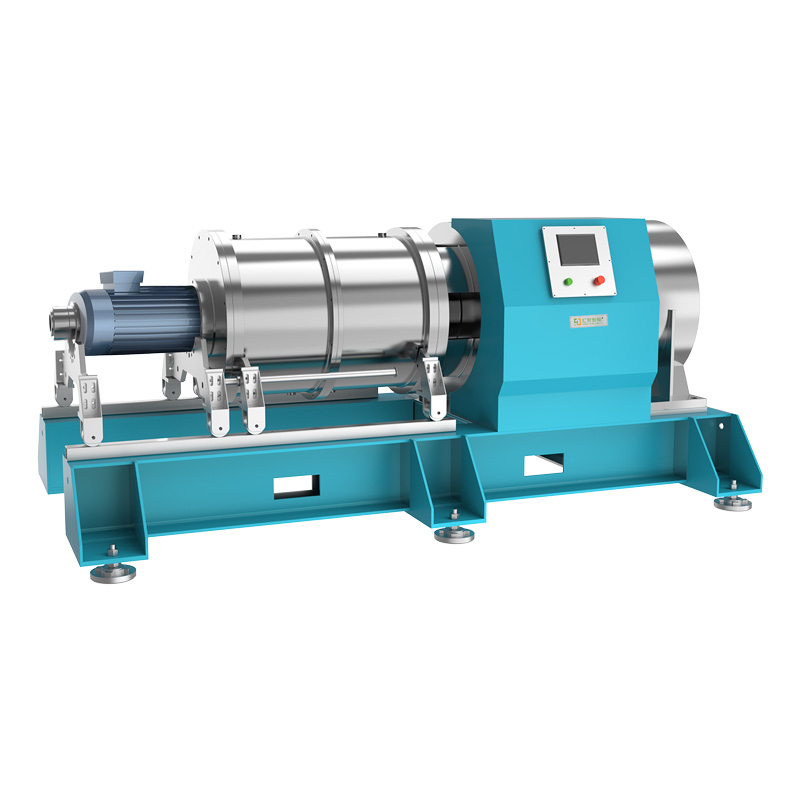

150L/400L/1000L

  • parameter
  • index
  • application
Model Effective Volume(L) Main Motor Power(kw) Separation Motor Power(kw) Minimum Feeding Volume(L) Medium Size(mm) Cooling Water(m³/H) Overall Dimensions(mm) Machine Weight(kg)
KNB-L-2L 2 7.5 5.5 6 0.03-0.6 0.3 1020x780x840 230
KNB-L-3L 3 11 5.5 20 0.03-0.6 0.5-0.8 1800x1250x1300 600
KNB-L-6L 6 18.5 7.5 30 0.03-0.6 1-1.5 2000x1250x1400 800
KNB-L-10L 10 22 11 30 0.03-0.6 1.5-2 2100x1100x1500 1300
KNB-L-30L 30 45 15 80 0.03-0.6 3-4 2300x1250x1650 2000
KNB-L-60L 60 75 18.5 100 0.03-0.6 7-8 2600x1450x1900 3800
KNB-L-150L 150 185 30 300 0.03-0.6 15-18 5000x1600x2100 7000
KNB-L-400L 400 355 30 600 0.1-0.6 20-23 7000x1900x2200 16000
KNB-L-1000L 1000 650 45 1500 0.1-0.6 30-32 9000x2080x2100 25000
  • Feed particle size: <10μm
  • Final particle size: ≥0.03μm
  • Solvent type: water-based, solvent-based
  • Viscosity requirement: <3000CPS
  • Media size: 0.03-0.6mm
  • Optional materials: Zirconia, Silicon Carbide, Silicon Nitride,Alloy, Polyurethane, Polymer, etc.

Zirconia, slicon carbide, alumina, cerium oxide, nitride and other ceramic powders, carbon materials, new nano materials, etc.
