Guangdong Wiking Intelligent Equipment Co.,Ltd.

KNW-S/D Series Turbine Nano Sand Mill

  • Turbine grinding structure, more uniform shear force, does not damage the carbon tube structure, is an ideal choice for processing carbon nanotube slurry.
  • Dynamic screen separation structure, large flow, suitable for high-viscosity material processing, no machine blockage.
  • Cooling system design based on spiral stereo thermal principle and fuid principle, can quickly cool the material and effectively control the grinding temperature.
  • Imported sealing technology, safe and reliable, add the same type of solvent to the material to prevent material loss due to leakage.
  • Pressure, temperature, liquid level automatic protection device interlock, safer to use.
  • Multiple materials are available for internal structure to meet different material requirements.
  • Optional key operation (explosion-proof) or PLC touch screen operation.
Style

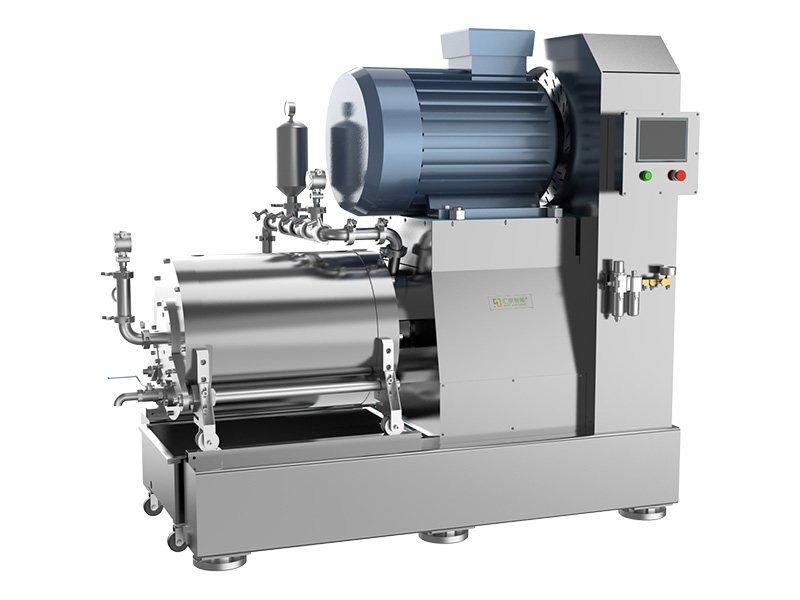

KNW-S/D-30L

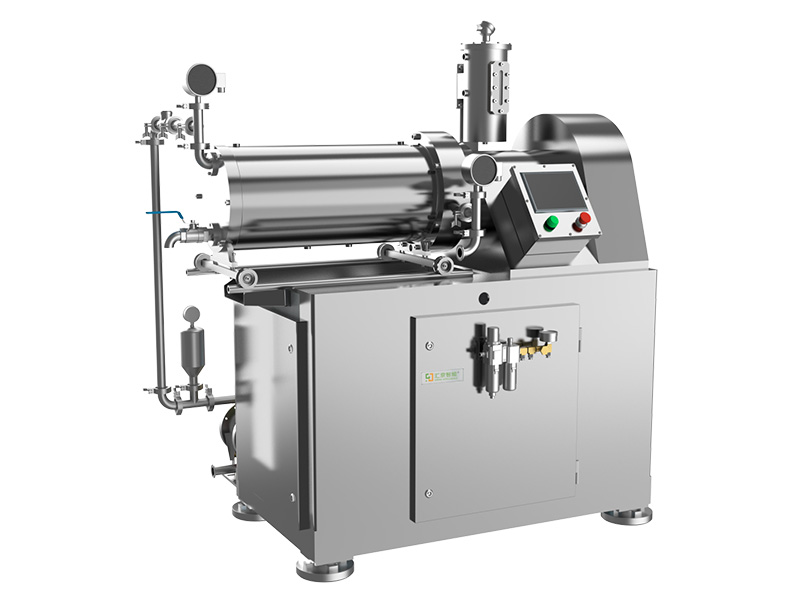

KNW-S/D-90/150/400L

  • parameter
  • index
  • application
Model Effective Volume(L) Main Motor Power(kw) Speed(r/min) Grinding Media Miameter(L) Overall Dimensions(mm) Machine Weight(kg)
KNW-3L 3 7.5 0-1450 0.1-2.0 910x680x900 400
KNW-10L 10 18.5 0-1460 0.1-2.0 2230x1367x1870 1000
KNW-30L 30 45 0-1316 0.1-2.0 2950x1220x1850 1500
KNW-60L 60 75 0-825 0.1-2.0 2985x1204x2240 2210
KNW-90L 90 90 0-776 ≥0.2 3290x1478x1950 3500
KNW-150L 150 160 0-627 ≥0.2 4500x1700x2400 6500
KNW-400L 400 315 0-460 ≥0.2 4600x1600x2400 12000
  • Feed particle size: <200 μm
  • Final particle size: ≥0.1 μm
  • Solvent type: water-based, solvent-based
  • Viscosity requirement: <10000CPS
  • Media size: 0.1-2.0mm
  • Optional materials: Zirconia, Silicon Carbide, Silicon Nitride, Polyurethane, etc.

Carbon nanotubes, graphite, graphene conductive slurry, battery positive electrode materials,etc.
