KFS High Speed Disperser

  • With variable speed control by frequency converter, it can run for a long time, run stably and with low noise.
  • The stiring disc is easy to disassemble, and the impellers of different specifications and forms of dispersion discs,such as paddle type and anchor type, can be replaced according to the process characteristics.
  • The ifting structure uses hydraulic cylinder as the actuator, which is stable in ifting and lowering. and uses an integrated oil tank, which is environmentally friendly and leak-free.
  • If there are special production requirements, customized production can be carried out according to specific production needs.
Style

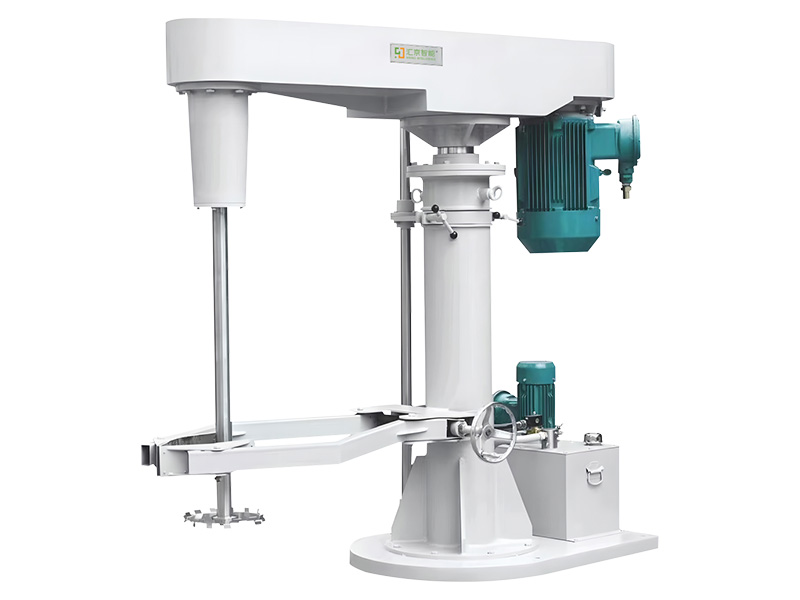

Standard KFS High Speed Disperser

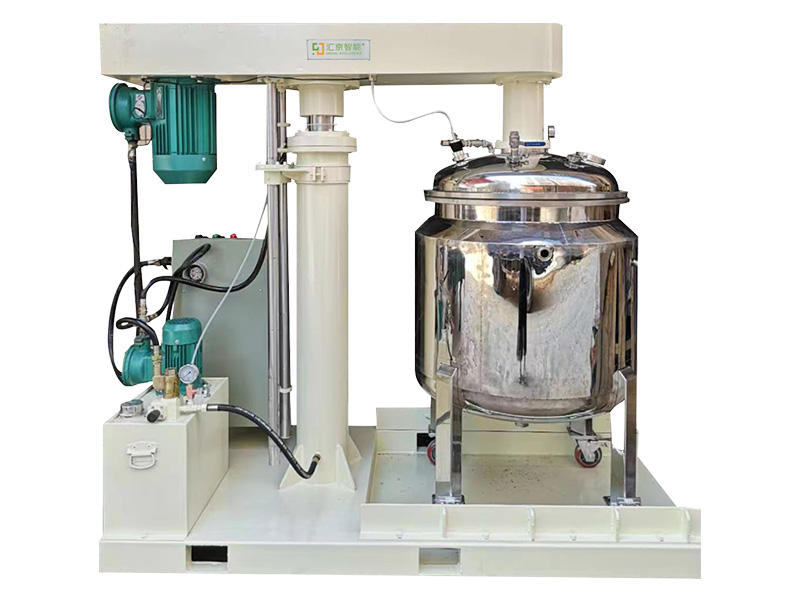

Vacuum Type KFS High Speed Disperser

  • parameter
  • index
  • application

Model
(kw)
Main motor
(kw)
Pump motor

Lifting method
(rpm)
Spindle speed
(mm)
Dispersion disc diameter
(mm)
Lifting stroke
(mm)
Dimensions
KFS-4 4 0.75 Hydraulic pressure 0–1450 200 800 1500 × 600 × 1640
KFS-5.5 5.5 0.75 0–1450 200 800 1750 × 700 × 1800
KFS-7.5 7.5 0.75 0–1450 250 1000 1750 × 700 × 1800
KFS-11 11 0.75 0–1450 300 1000 1750 × 700 × 1920
KFS-15 15 0.75 0–1450 300 1200 1750 × 700 × 1920
KFS-18.5 18.5 1.1 0–1450 350 1200 2050 × 750 × 2020
KFS-22 22 1.1 0–1450 350 1200 2050 × 750 × 2020
KFS-30 30 1.5 0–1450 400 1200 2050 × 750 × 2020
KFS-37 37 2.2 0–1450 400 1200 2050 × 750 × 2020
KFS-45 45 2.2 0–1450 450 1300 2200 × 800 × 2300
KFS-55 55 2.2 0–1450 450 1300 2200 × 800 × 2300
KFS-75 75 2.2 0–1450 450 1300 2350 × 850 × 2150

Coatings, inks, dyes, pigments, food, pharmaceuticals, pesticides, etc.
