KXH Series Planetary Mixer

The mixing barrel used for ifting and lowering slury is equipped with a round cover to facilitate.
The replacement of barrels or cleaning of the agtator.
The operating equipment consists of a reducer, a frequency converter, a reducer base, a barrel cover, control system, etc.
The mixing head consists of a transmission part connected to the motor installed on the barrel cover, which drives a set of low-speed stiring paddles under the barrel cover.
The stirring paddle rotates in the mixing barrel, which can achieve independent step-less speed regulation.

Style

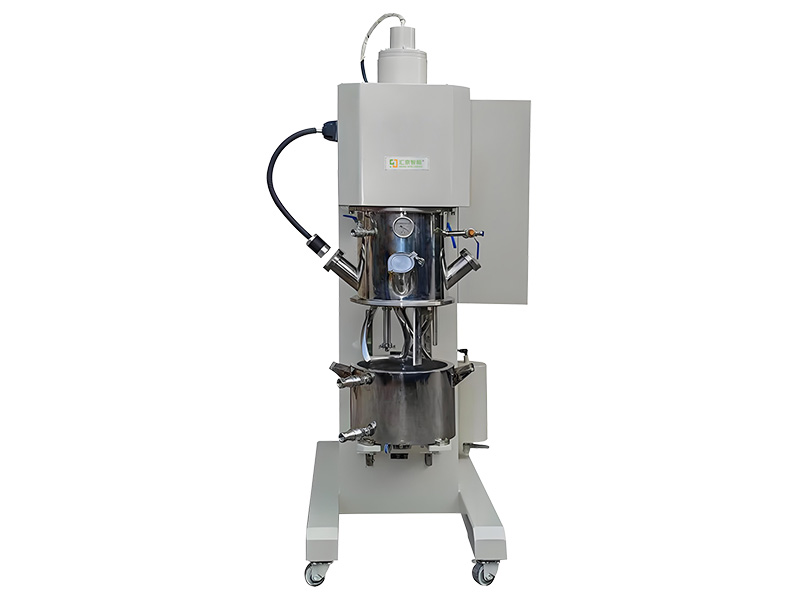

KXH Planetary Mixer

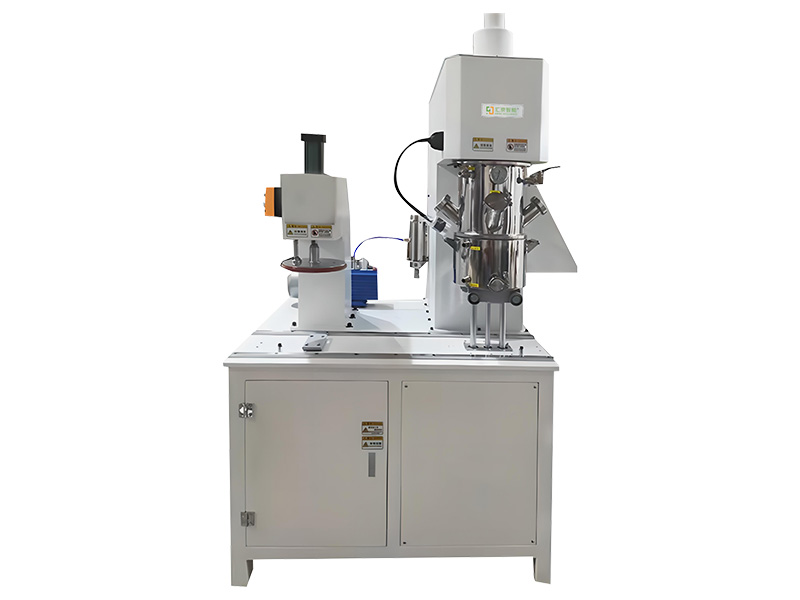

KXH Planetary Mixer with Material Pressing Integrated Machine

Model	Barrel size			Motor power		Speed		Shape
Model	(L) Effective volume	(L) Design volume	(Dia.×Dep mm) Inner barrel size	(kw) Stirring motor	(kw) Dispersing motor	(rpm) Stirring speed	(rpm) Dispersing speed	(mm) Dimensions	(kg) Weight
KXH-1L	1	1.95	Φ150×120	0.45	0.55	0–75	0–4800	800×450×1100	200
KXH-2L	2	3	Φ180×120	0.75	1.1	0–118	0–9040	1036×688×1536	450
KXH-5L	5	7.85	Φ250×160	1.5	1.5	0–122	0–8173	1225×798×1715	800
KXH-10L	10	14	Φ300×200	1.5	2.2	0–105	0–6764	1352×798×1828	900
KXH-15L	15	24	Φ350×250	1.5	2.2	0–105	0–6200	1558×640×1829	1300
KXH-30L	30	44	Φ400×350	4	4.5	0–96	0–5317	1866×1068×1850	1500
KXH-60L	60	88	Φ500×450	5.5	7.5	0–91	0–4393	1967×1150×2257	2200
KXH-100L	100	149	Φ650×450	7.5	11	0–78	0–3682	2241×1035×2511	3000
KXH-200L	200	265	Φ750×650	11	18.5	0–85	0–2977	2621×1190×2986	4000
KXH-300L	300	369	Φ850×650	15	22	0–56	0–2607	3342×1796×3271	5000
KXH-500L	500	668	Φ1000×850	30	45	0–42	0–2200	3800×1881×4000	7200
KXH-600L	600	807	Φ1100×850	45	55	0–40	0–1920	3958×1500×3959	7500
KXH-1000L	1000	1327	Φ1300×1000	55	75	0–35	0–1600	4150×1800×4750	10000

Applicable to the mixing process of various chemical raw materials with dynamic viscosity less than 1 milion CP.
Applicable to dry powder mixing proces :Dry powder mxing - impregnation - kneading mixing - dilution mixing - slurying.
Lithium-ion battery slury and solution; Applicable viscosity: ≤100kcps; In terms of physical or chemical performance specifications，
it is suitable for corrosive solvents such as NMP and aqueous solvents such as DIW.
